How To Get Up Close And Intimate (Part V) – De-glassing A Teleconverter

It’s a long held belief of mine (and not just as a photographer) that the beauty of life is in the tiny details.

So for as long as I’ve been photographing with intention (since around 2006 with Sony camera phones), I’ve been drawn to photographing up close and intimate.

This is a short series on ways I’ve used cameras to get within breathing distance of that beauty.

You can see all posts in this series here.

I thought I had concluded this close up series some weeks back, but when I came across this option for the first time very recently, I thought it was well worth sharing.

Part V – De-glass A Teleconverter

In Part III of this series we looked at dedicated macro extension rings.

I’ve only used these with M42 lenses, where there are no electric contacts to stop the lens down, focus, or adjust the aperture via the camera, so they are simply hollow metal tubes with a screw thread at each end that hold the lens closer to the subject that if it was mounted directly on a camera.

More recently I’ve been using Pentax K mount DSLRs and lenses. These are automatically stopped down by the camera, and because I’ve been using A, F and DA series lenses, the aperture is controlled by the camera too.

In the case of the F and DA lenses, they’re Auto Focus (AF) too.

So using something similar to the “dumb” M42 mount extension rings would remove much of the automated functionality of these K mount lenses, and with the DA lenses  lacking a manual aperture ring, they’d be next to useless.

I began looking at options for K mount extension rings that wouldn’t completely lose automation.

AF versions are too expensive (I could buy an A series dedicated macro lens for a similar amount) plus there are compatibility issues, depending on the type of AF lens you use.

So I abandoned the AF route.

Being no stranger to manual focus, I turned my search here next.

There are a number of cheap third party “dumb” extension tubes, but any with electrical contacts quickly increase in cost towards £100.

Again, given I could buy a dedicated macro lens for around that, it didn’t seem money well spent.

After some research online, I read of a few people who have bought a teleconverter, that has the electrical contacts to stop down and adjust aperture in camera (KA Mount, rather than the original K mount), and de-glassed it, ie removed the glass elements inside that change the focal length of the lens attached.

With one of these, aside from having to focus manually, you have the same automation as using the lens without the teleconverter.

So I found an article on how to de-glass a particular Pentax made 2x teleconverter, then picked up an example on eBay for £17.

48642405611_923cd6eefc_b

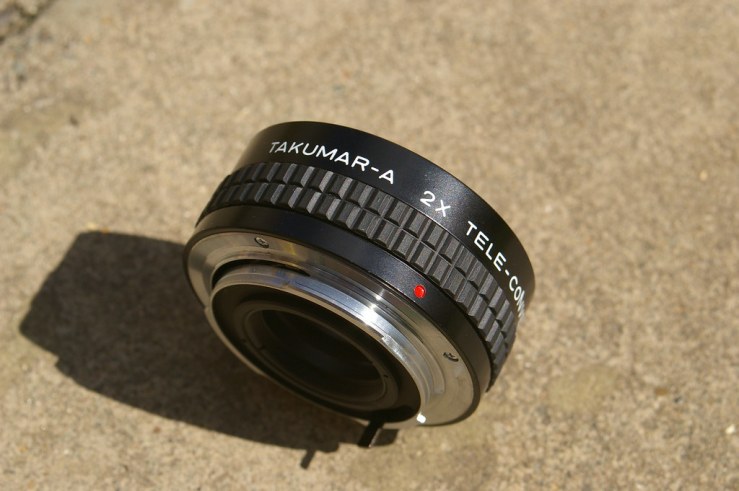

Pentax Takumar-A 2x Tele-Converter

Removing the glass was very straightforward (this is why I chose this particular teleconverter – I’m not brilliant at lens disassembly and considerably worse at reassembly) and involved just unscrewing the outer locking ring that secures all the internal elements, then unscrewing the metal barrel that contains the innards, removing the glass and spacers and replacing the metal barrel and locking ring.

Which took me about five minutes.

What you’re left with is an adapter that retains automation for Pentax-A and F lenses, but internally is essentially just a hollow tube.

Crucially, it means the lens used is moved considerably further away from the camera, so the close focus is dramatically increased.

For example, the usual minimum focus of my Pentax-A 50/1.7 is typical of most 50/55mm lenses at 0.45m.

With this extension tube, the potential up close increases drastically.

48630924933_e785e9460b_b

What I like about this approach is you can use any compatible K mount lens on the other end, as they all have manual focusing capabilities.

With the A and F series lenses I have (which I favour with a DSLR as they give a more fluid experience than stopping up and down with manual aperture rings), they operate with the same automation as if the converter wasn’t there at all.

Aside from the slightly extra weight (approx ) and of course the extra distance it makes the lens protrude, it’s exactly the same in practical terms as using the lens directly.

Also as there are no optical elements, there is no loss of quality with the lens either.

The photographs in this post were made with this de-glassed teleconverter and the Pentax-A 50/1.7 lens.

48631181166_e212d93845_b

If I want to get even closer, I can use my SMC Pentax-F 35-70mm in its “macro” range at 70mm. So I have plenty of options when I want to get up close and intimate with these lenses, and retain automation.

As you know, I’m using Pentax K mount, but the same principle can be applied to any teleconverter that features the automation you require for your DSLR, and all brands have these kind of teleconverters available, made either by the brand themselves, or a third party.

It’s worth doing some research first, as I suspect some are much more straightforward to de-glass than others.

How about you? Have you ever used a de-glassed teleconverter as a macro extension ring? If not, is it something you’d be interested in trying?

Please let us know in the comments below (and don’t forget to tick the “Notify me of new comments via email” box to follow the conversation).

Thanks for looking.

What Next?

Share this post with someone you think will enjoy it using the buttons below.

Read a random post from the archives.

See what I’m up to About Now.

8 thoughts on “How To Get Up Close And Intimate (Part V) – De-glassing A Teleconverter”

  1. What a fascinating idea! It doesn’t apply to my old all-mechanical photo gear, but the idea of repurposing an auto-function component while retaining and using at least part of it’s auto function is a new one on me. Something to think about. Thank you!

    1. I know, it’s a great idea isn’t it? It wouldn’t have occurred to me either because I have only used a teleconvertor once before and didn’t really like the results, or the experience. But being able to use one to maintain the auto function of aperture, without any impact on image quality (as there’s no glass, just air to pass through) and allow that super closeness is excellent. Plus it doesn’t really add much weight or bulk to a DSLR, it’s about half the depth of your average lens, but lighter as there’s nothing in the middle.

  2. This is a new one on me Dan, but a brilliant concept. I will definitely try this. Where I live we don’t have easy access to ocean views, or scenic hills and vistas, but we do a lot of good material for macro photography. Thank you for the tip.

    1. I know, I love DIY hacks like this that are easy to do and save money versus the dedicated equivalent. There must be dozens, if not hundreds, of teleconvertors knocking about on eBay in all the major mounts. If you’re going Pentax, mine is called the Pentax Takumar-A 2x teleconvertor. I think there is a 1.4x that would do the same job as only the glass is a different magnification, which you’re removing anyway. I didn’t care about losing AF as it’s easier close up to just preset the focus then rock the camera forward and back incrementally to find optimum focus.

      Yes one of the best things about macro is it opens up so many more photo opportunities. You don’t need to hike miles, just a small garden with some flora and fauna to explore – your own, someone else’s, or a public park or garden.

      Let me know if you try this!

  3. Yes, they are practically free here Dan. I know I have some around somewhere, I actually had good luck with them years ago. Many years ago when I was doing more portraits they were very useful. I would look for the fastest, cheapest 50mm lens and a very cheap 2x tele converter and the combination often produced soft and interesting shots. An older photographer taught me that trick many years ago. I will let you know when I try the macro trick.

    1. I tried the 2x with a 50mm lens before I de-glassed it and the results were far better than I expected, especially given the generally scathing reviews of this particular teleconverter on Pentax Forums. Certainly acceptable for my standards of sharpness!

      Generally it was a bit long though, 100mm plus the crop factor of 1.5x for the APS-C sensor made it a 150mm equivalent field of view. It’s far more useful to me as the macro converter.

      Still, I have the internal elements if I ever want to “re-glass” mine!

  4. This is such a simple yet obvious idea. Brilliant !

    Guess you can even de-glass a standard (non-AF) teleconverter to re-use as an extension tube and I’m sure I have an old one I never use.

    1. Phil, yes the one I used isn’t AF. It just has the electrical contacts needed to communicate with the camera, so I can adjust the aperture of the lens on the camera body, retain all the EXIF data, and so on. You could certainly use an older teleconverter that has simply the right mechanical connection to stop down the lens, and nothing else, and for manual aperture and manual focus it should work well.
